If you’re upgrading or rebuilding a PC with limited space behind the motherboard tray, a 90 degree SATA adapter can simplify cable routing without sacrificing performance. These adapters are ideal for compact desktop builds, mini-towers, or office PCs where space is at a premium. The following five adapters are selected for different needs—from budget-friendly dual-port options to high-flexibility cables—and help you choose based on space, drive type, and ease of installation.
Product Comparison Table
| Product | Best For | Key Benefit | Limitations |
|---|---|---|---|
| ChenYang 2 Pack SATA Male to Female 90 Degree Angled | Budget-friendly space management | Simple direction change for 2.5″/3.5″ drives | Basic connector; limited power/data cable details |
| CERRXIAN 90 Degree Dual SATA 7PIN (2-Pack) | Tight cases with dual cables | Right-angle design improves cable management | May require careful seating in crowded bays |
| Cable Matters 3-Pack 90 Degree SATA Cable 18 Inch | Internal cables with reliable locking | Right-angle data cables with locking latch | Cables aren’t adapters; fixed length |
| Cablecc 7Pin 90 Degree Down Angled Adapter | Desktops needing vertical-to-horizontal routing | Simple adapter for reinstalling cable direction | Single-port adapter; limited to 7-pin configuration |
| CY 90 Degree Down Angled SATA 22Pin | Space-constrained setups with 22-pin connections | Supports 12V + 5V and 6Gbps data | TE limited to 22-pin interface family |
ChenYang 2 Pack SATA Male to Female 90 Degree Angled
The ChenYang 2 Pack 90 degree angled SATA adapters are designed to redirect the connection direction for 2.5″ and 3.5″ SATA hard drives without altering speed or interface. They handle standard 5V/12V power and 6Gbps data lines. Best for budget-conscious builders who need a straightforward right-angle solution in small cases. Use this when you want a quick, no-frills orientation change for internal SATA cables. Limitation: these are basic adapters without advanced features like locking latches or multi-port support.
CERRXIAN 90 Degree Dual SATA 7PIN (2-Pack)
The CERRXIAN 90 Degree Dual SATA adapters come in a two-pack for dual-cable routing needs. The 90-degree right angle helps with cable management in tight spaces, and they remain fully SATA III compliant with data transfer speeds up to 6 Gbit/s. They are backwards compatible with SATA 1.0 and 2.0. Best for users who need two adapters in a compact, space-constrained build. Consideration: ensure adequate clearance around the drive bay to avoid cable bending or stress.
Cable Matters 3-Pack 90 Degree SATA Cable (18 Inch)
These Cable Matters cables are 90-degree right-angle SATA data cables that maximize space in tight builds. They support up to 6Gbps with locking latches to secure connections. The 18-inch length helps reach mid-case drives without excessive slack, and the included cable ties aid organization. Best for gamers and enthusiasts who need stable, long cables in compact builds. Limitation: as cables, they are not adapters; if you need to change port orientation, you’ll still use a separate adapter or a different route.
Cablecc 7Pin Female to 7pin Male 90 Degree Down Angled Adapter
The Cablecc 7Pin Female to 7pin Male 90 Degree Down Angled adapter is designed to redirect SATA cable installation direction on desktops and motherboards. It’s a practical option for reorganizing cables from vertical to horizontal in tighter cases. Best for users who need a simple directional change without adopting a full-length cable. Caution: only addresses 7-pin SATA connections, so ensure compatibility with your drive type and motherboard connector count.
ChenYang SATA Male to Female 90 Degree Down Angled
This ChenYang adapter focuses on changing the connection direction of 2.5″/3.5″ SATA drives with a down-angled orientation. It supports 5V/12V power and up to 6Gbps data. Best for users who want a straightforward directional change without modifying data speeds. Limitation: like other budget options, it lacks advanced features and dual-port capability.

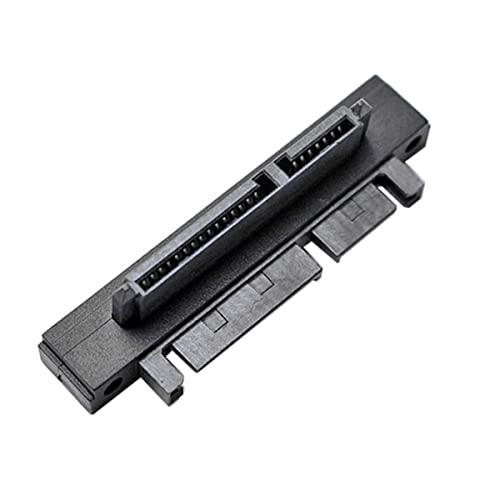

CY 90 Degree Down Angled SATA 22Pin
The CY 90 Degree Down Angled SATA adapter is designed to fit 22-pin SATA connections and supports both 12V/5V power and 6Gbps data transfer. It is best for space-limited installations where power routing and data integrity are both a consideration. Choose this when your system uses 22-pin SATA configurations and you need a reliable right-angle solution. Limitation: not universally compatible with all 22-pin setups; confirm port type before purchase.
ChenYang SATA Male to Female 90 Degree UP Angled
ChenYang offers a 90-degree UP angled SATA adapter that redirects the direction for 2.5″/3.5″ drives, maintaining 5V/12V power and 6Gbps data. It’s suited for builds where cable routing requires an upward angled connection, such as behind certain motherboard layouts. Benefit: predictable performance with standard SATA speeds. Caution: ensure there’s enough clearance above the drive for the angled orientation to avoid cable strain.
Buying Guide: Key Purchase Considerations
What should I look for in a SATA 90 degree adapter or cable?
- Connector type: Confirm the number of pins (7-pin SATA power/data vs. 22-pin where applicable) and whether you need a single-port adapter or a dual/pack solution.
- Angle orientation: Down vs. up vs. left/right angles; choose based on your case layout and drive bay alignment to minimize cable stress.
- Data speed compatibility: Ensure the adapter supports at least 6Gbps to maintain SSD/HDD performance.
- Power delivery: Some adapters handle power lines; verify that 5V/12V pathways are intact for your drives.
- Physical footprint: In ultra-compact builds, measure clearance around drive bays and motherboard trays to avoid bending cables or interference with fans.
- Locking and security: Cables with locking latches reduce the risk of disconnection during movement or vibrations.
FAQ
- Do SATA 90 degree adapters reduce performance?
No. They only redirect the connection direction; data and power speeds remain governed by the drive and controller capabilities.
- Are 90 degree adapters compatible with NVMe or mSATA drives?
These adapters are designed for SATA drives (2.5″/3.5″). NVMe and mSATA use different interfaces and are not compatible.
- When should I use a dual-port 90 degree adapter?
When you need to route two SATA cables in tight spaces, such as dual drives or when space around a single port is constrained.
- What is the advantage of locking-latch SATA cables?
Locking latches help prevent accidental disconnections, particularly in systems with frequent movement or adjustable components.
- How do I pick the right angle for my case?
Measure the space behind the drive bays and the orientation of your cables. Choose an angle that minimizes bend radius and keeps cables clear of fans and chassis panels.
